Gear Profile Grinding Machines

G 500 H

  • Module range: mm 0.5 – 22.0
  • Workpiece dia., max.: 500 mm | 19.5 in
  • Workpiece length, max.: 1,250 mm | 49 in

Gear Profile Grinding G 500 H

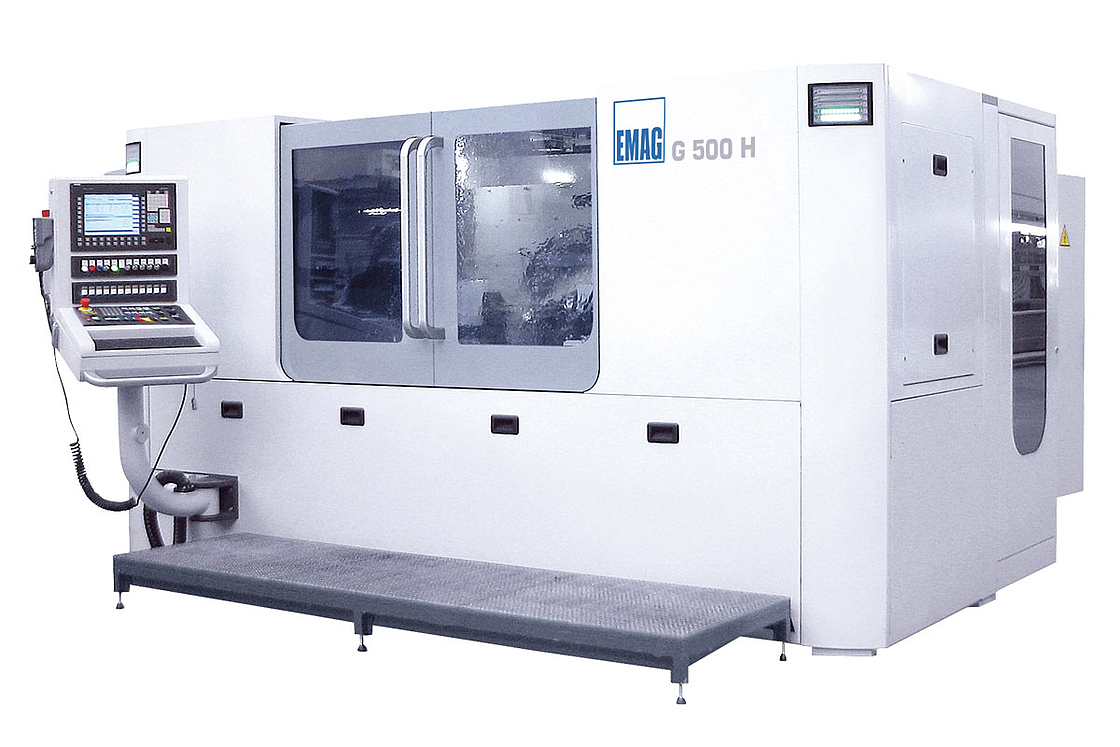

The G 500 H gear grinding machine is ideal for single pass creep feed grinding of external spur and helical gears, crown gears and shafts, worms, rotors and screw.

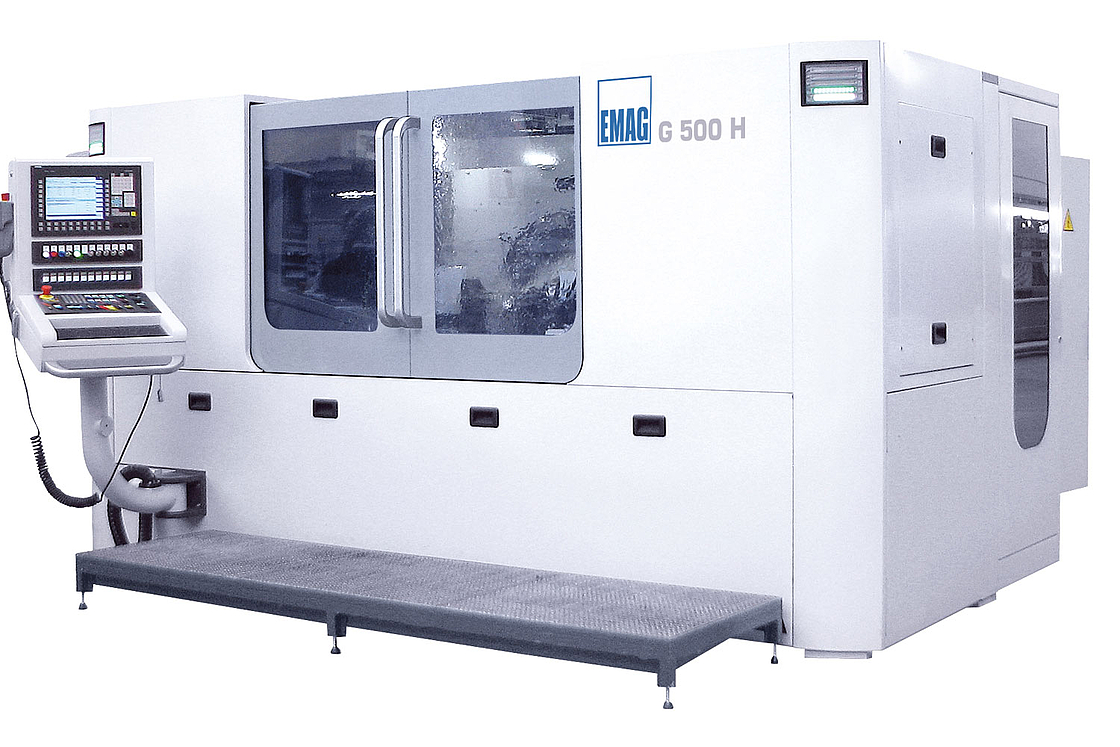

G 500 H Gear Grinding Machine: Flexible and Universal

The G 500 H gear grinding machine is the universal and extremely flexible base machine of the EMAG SU gear profile grinding machine Series.

It is ideal for single pass grinding of external spur and helical gears, trapezoidal screws, crown gears and shafts, worms, rotors and screw-type workpieces up to 500 mm in diameter and a workpiece length of 2,150 mm. Optionally it is possible to grind spur or helical internal gears.

Quick-change spindles for internal and external grinding and ceramic tool technology, combined with a flexible dressing unit and modular software packages guarantee rapid format change and unmatched process versatility.

Also electroplated CBN wheels and dressable CBN wheels can be used on this gear profile grinding machine. Extreme small grinding wheels can be used, internal grinding wheel starting from 26 mm, external wheel from12 up to 360 mm in diameter by using different spindles.

Advantages G 500 H

  • Universal solution for a wide range of gears, shafts and screw-type workpieces
  • Flexible manufacturing of small or large batches
  • Grinding from the solid
  • 5 different standard grinding spindles for external grinding and 4 for internal grinding
  • Integrated checking for internal and external gears
  • Automation possible
  • Tool changes as an option

Workpieces

The Right Manufacturing Solution for Every Workpiece

Technologies

Complex Manufacturing Systems from a Single Source thanks to a High Range of Technologies

Profile grinding of gears and long, slim and toothed components is performed discontinuously, i.e., tooth gap by tooth gap, is completed one after the…

More information

Technical Data

Module range

0.5 – 22.0 mm

Workpiece dia., max.

500 mm

19.5 in

Workpiece length, max.

1,250 mm

49 in

Module range mm 0.5 – 22.0
Workpiece dia., max. mm
in
500
19.5
Workpiece length, max. mm
in
1,250
49
Centre dist. work spindle / tool spindle mm
in
20 / 445
1 / 17.5
Tool spindle power kW
hp
20
27
Ceramic wheel diameter mm
in
30 / 360
1 / 14
Grinding spindle speed, max. rpm 32,500
Workpiece weight, max. kg
lb
350
771.5
Machine weight, including standard equipment kg
lb
15,000
33,069.5
